Heavy-Duty True RMS Industrial Multimeters with VFD Measurement: Precision for Modern Industries

Heavy-Duty True RMS Industrial Multimeters with VFD Measurement: Precision for Modern Industries

In today’s fast-paced industrial environments, precision and reliability are paramount. Whether you’re an engineer, electrician, or technician, having the right tools can make all the difference in troubleshooting and maintaining electrical systems. Heavy-duty True RMS industrial multimeters with VFD (Variable Frequency Drive) measurement are essential instruments for professionals working with complex electrical systems, providing accurate readings even in challenging conditions.

Why Choose a True RMS Industrial Multimeter?

Standard multimeters may struggle to measure non-linear loads accurately, leading to incorrect readings and potential safety risks. True RMS (Root Mean Square) technology ensures that the multimeter provides precise measurements of AC signals, regardless of waveform distortions. This feature is particularly critical in industrial applications where electrical systems involve:

• Non-sinusoidal waveforms

• Harmonics from electronic devices

• Fluctuating power supplies

With a True RMS industrial multimeter, users can confidently measure voltage, current, resistance, and more, even in environments with variable electrical loads.

The Importance of VFD Measurement

Variable Frequency Drives (VFDs) are widely used in industrial automation to control motor speeds efficiently. However, measuring electrical parameters in VFD-driven systems can be challenging due to high-frequency interference and fluctuating waveforms. A multimeter with VFD measurement capability allows professionals to:

• Accurately measure voltage and current in VFD-controlled motors

• Diagnose performance issues in industrial machinery

• Ensure efficient and safe operation of motor-driven systems

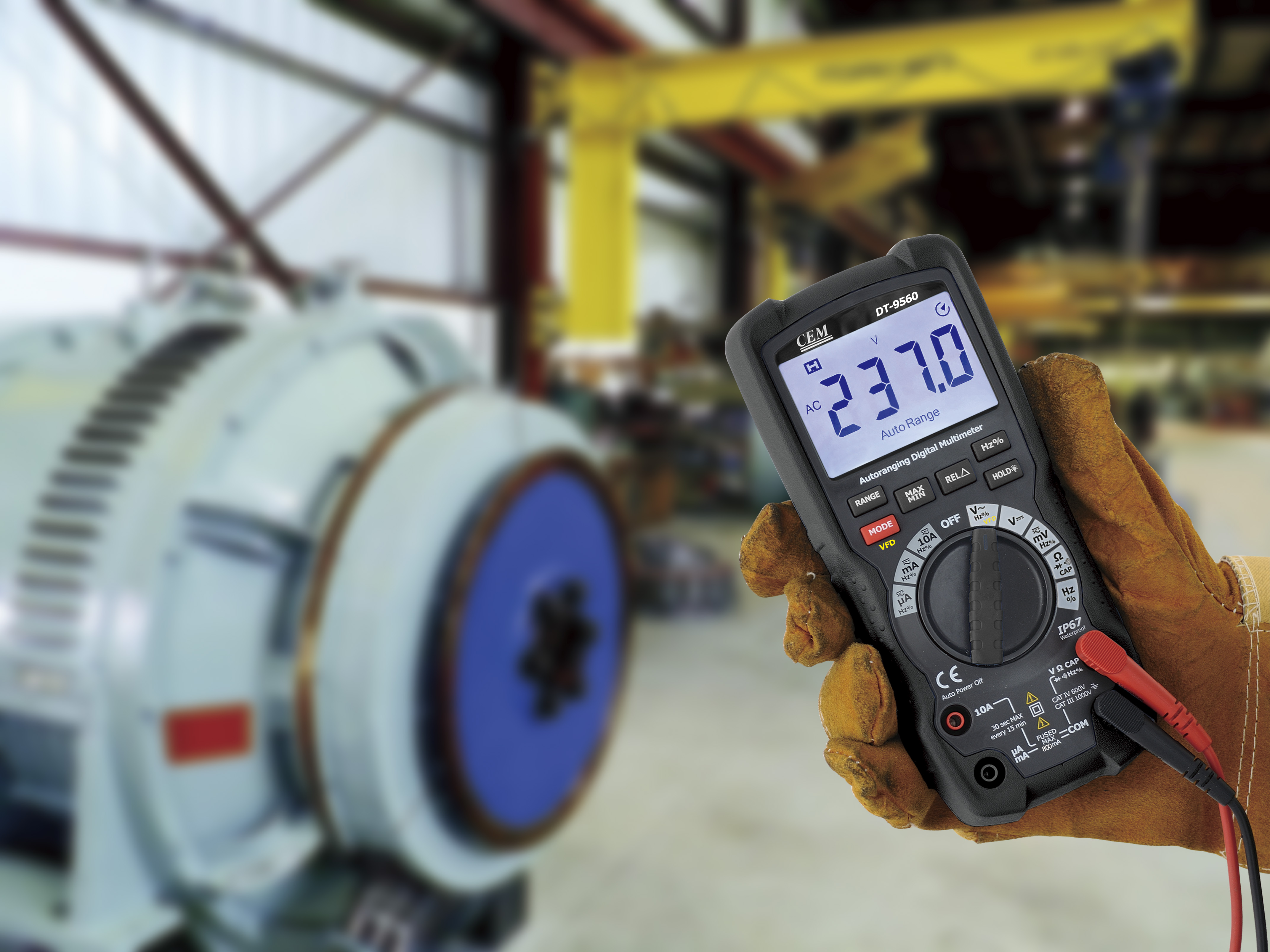

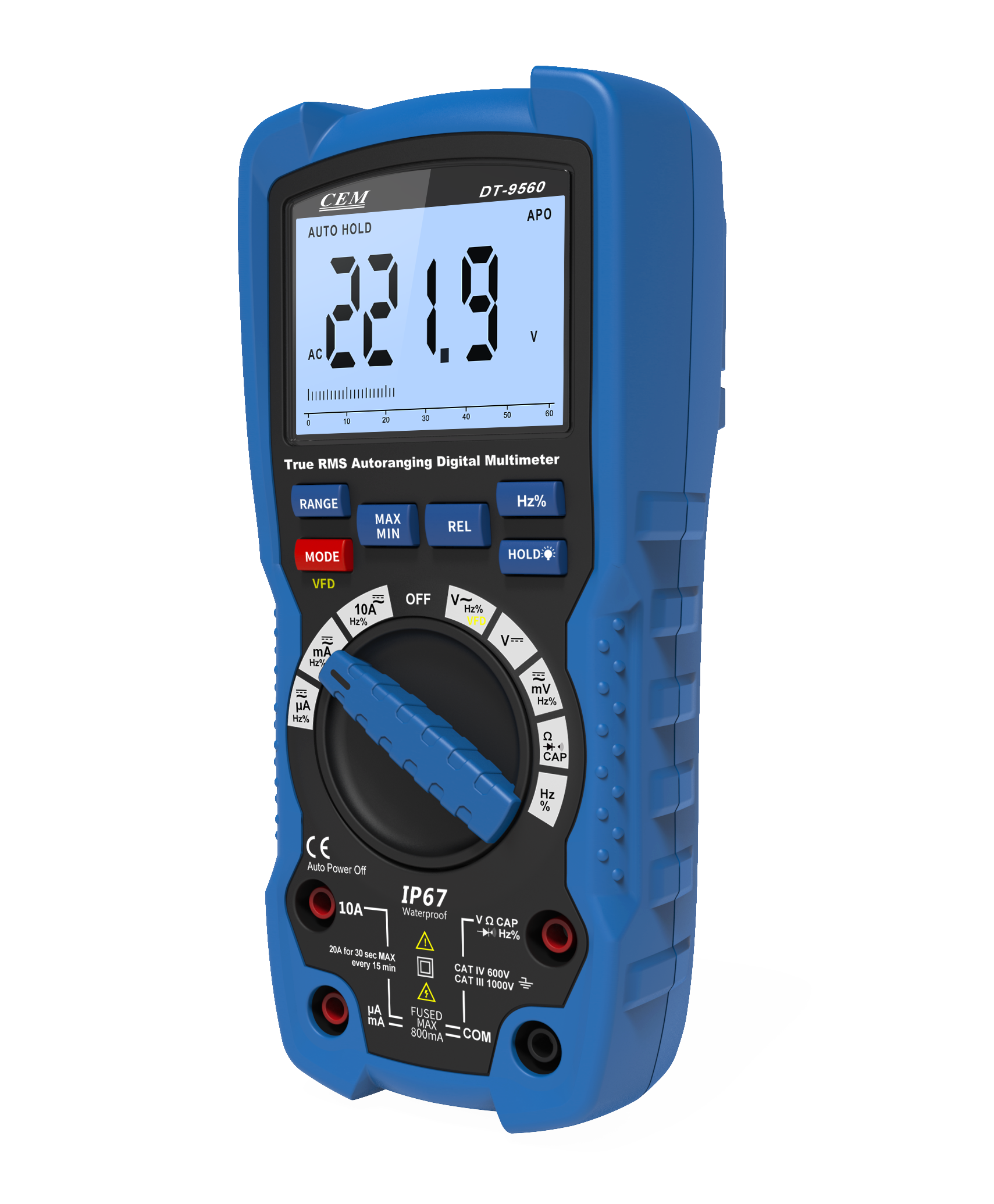

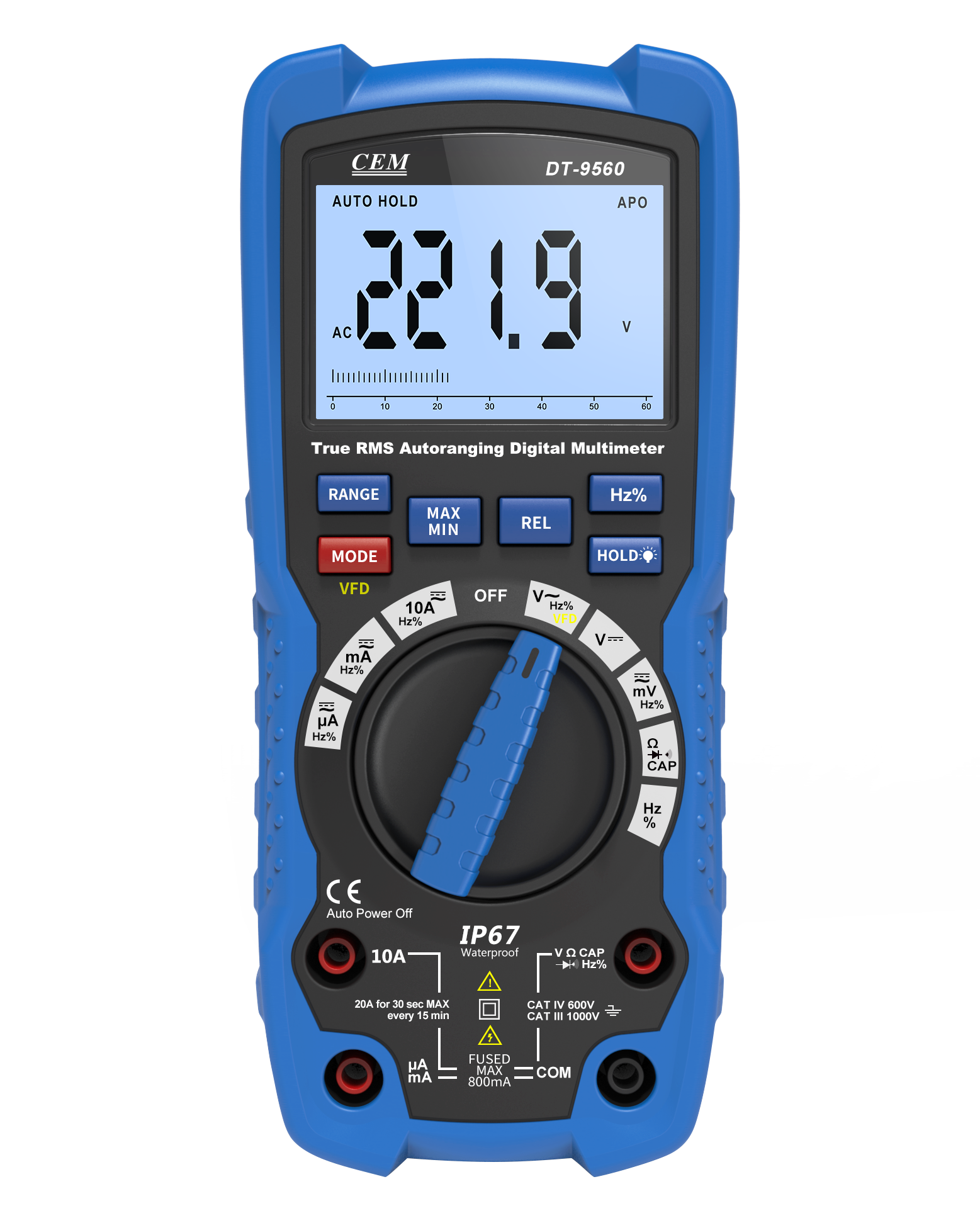

DT-9560: A Feature-Packed Industrial Multimeter

One of the top choices for industrial applications is the DT-9560, a rugged, high-performance True RMS multimeter with VFD measurement. It offers an array of features designed for professionals working in demanding environments.

Key Features of DT-9560

• Low Pass Filter – Ensures accurate measurement of Variable Frequency Drive (VFD) signals

• 6000 Counts Display – Provides clear and precise readings with LCD backlight

• True RMS Measurement – Delivers accurate AC voltage and current readings, even for distorted waveforms

• 45Hz~1kHz AC Bandwidth – Wide frequency range for industrial applications

• Diode & Continuity Buzzer – Enhances troubleshooting efficiency

• Auto Power Off – Extends battery life

• Low Battery Indication – Alerts users when battery replacement is needed

• Data Hold Function – Freezes the displayed value for easy recording

• Auto Ranging – Automatically selects the appropriate measurement range

• Max/Min Mode – Captures peak values for better analysis

• Relative Mode – Allows users to measure relative differences

• Input Protection – Ensures user safety during high-voltage measurements

• IP67 Waterproof Rating – Provides excellent durability in harsh environments

Technical Specifications

• Size (HxWxD): 180mm x 82mm x 55mm

• Weight: 255g

• Accessories Included:

  • Test leads

  • 9V battery

  • Temperature probe (model 9561)

  • Gift box with carrying case

Applications Across Industries

Heavy-duty True RMS industrial multimeters with VFD measurement find applications across various industries, including:

• Manufacturing Plants – For troubleshooting automation and control systems

• Power Plants – To monitor and maintain electrical grids and machinery

• HVAC Systems – Ensuring optimal motor performance and efficiency

• Renewable Energy – Assessing electrical outputs from solar panels and wind turbines

Choosing the Right Multimeter for Your Needs

When selecting an industrial multimeter, consider factors such as accuracy, durability, safety features, and additional functionalities that match your specific work environment. Investing in a high-quality True RMS multimeter with VFD measurement ensures long-term efficiency and reliability in electrical diagnostics and maintenance.

Conclusion

A Heavy-Duty True RMS Industrial Multimeter with VFD Measurement is a must-have tool for professionals dealing with complex electrical and motor-driven systems. The DT-9560 stands out with its advanced features, robust build, and high accuracy, making it an ideal choice for industrial environments. By providing accurate, stable, and reliable readings in challenging conditions, these multimeters help ensure efficiency, safety, and operational excellence.

Explore our latest range of industrial multimeters designed to meet your needs and take your electrical diagnostics to the next level!
