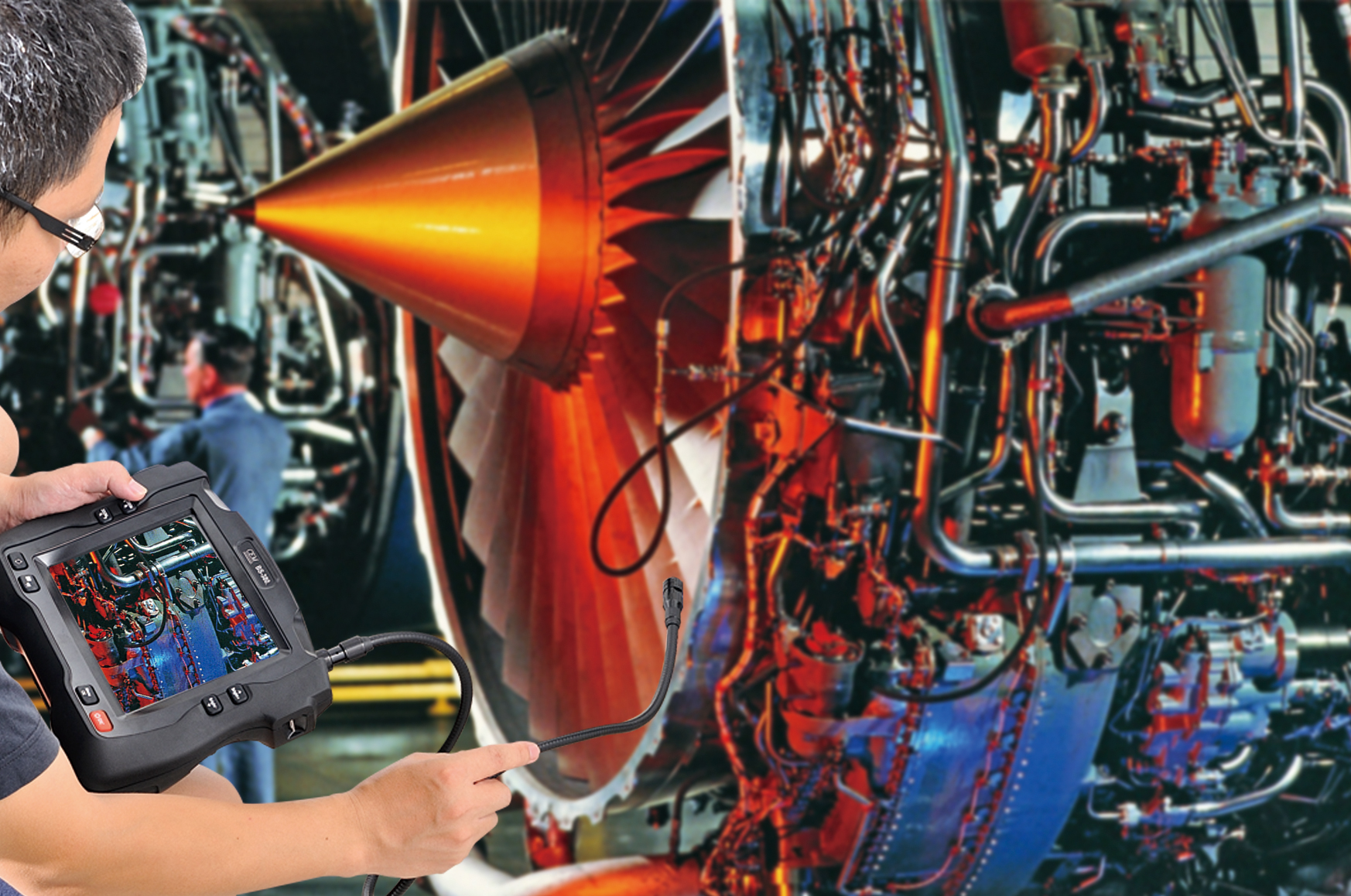

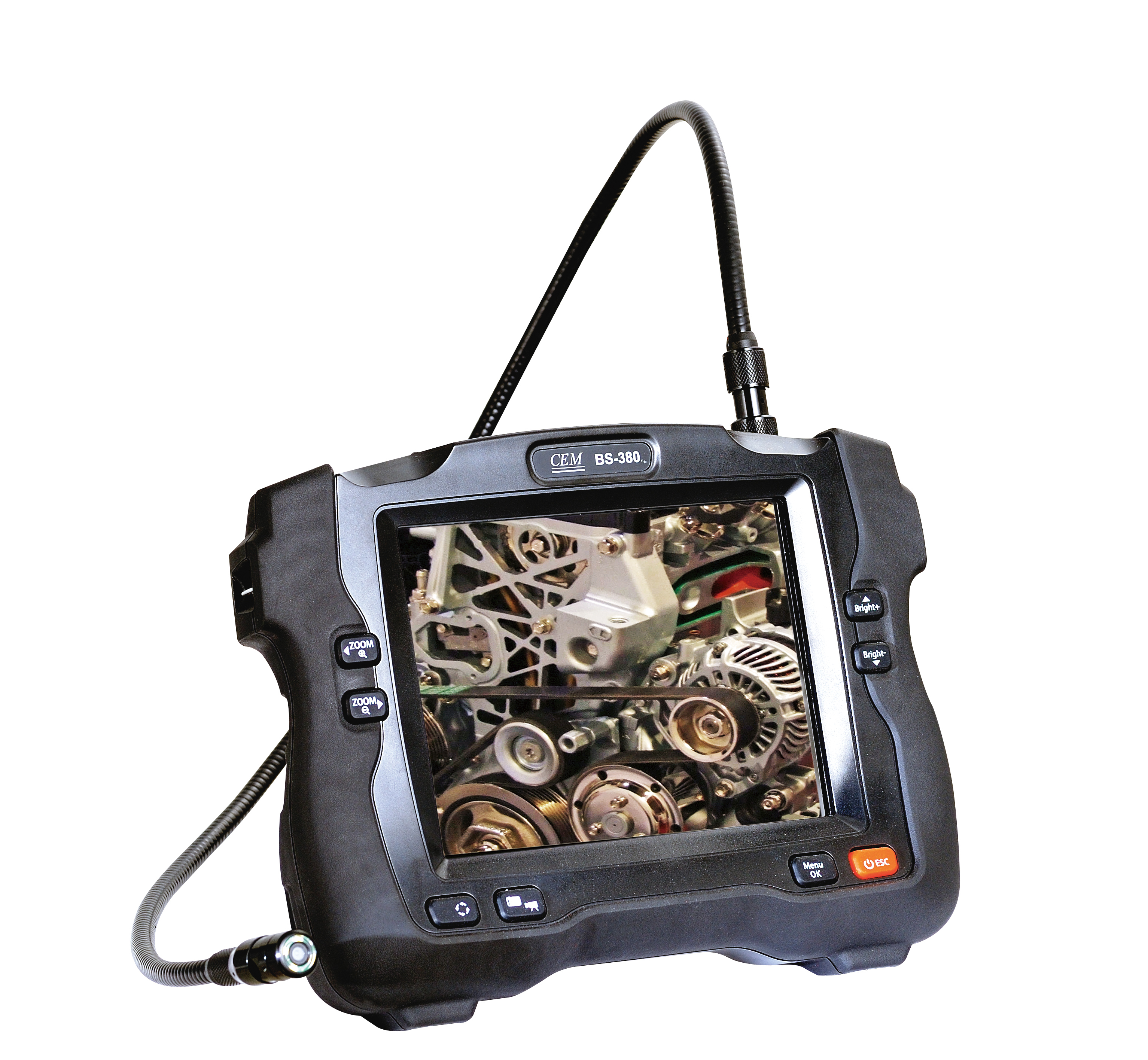

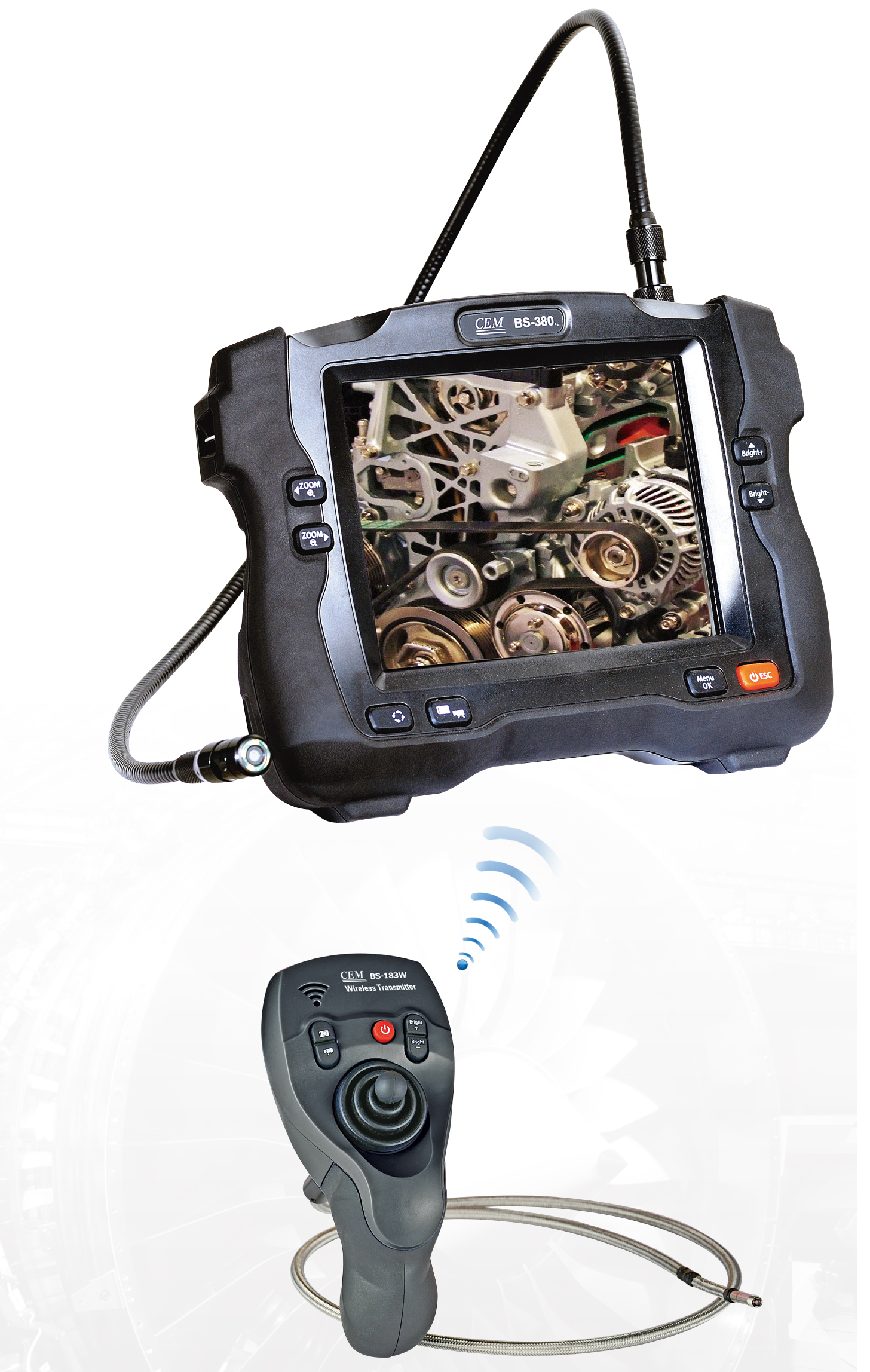

BS-380 High Definition Video Borescope | 8" LCD | 1080P Video | 4MP Photo | IP67 Waterproof

BS-380 HIGH DEFINITION VIDEO BORESCOPE WITH 8" COLOR LCD DISPLAY

Professional Visual Inspection System with High Definition Imaging

The BS-380 High Definition Video Borescope is a professional visual inspection system featuring an 8-inch color TFT LCD display with high definition 800×600 resolution. Designed for industrial, mechanical, and maintenance applications, this borescope provides clear imaging of hard-to-reach areas with waterproof camera probe and flexible gooseneck design.

Key Features:

High Definition Display and Imaging:

• 8" color TFT LCD with high definition 800×600 resolution

• Supports 4MP photos and full HD video recording

• Time and date display on captured images and videos

• Multi-language interface support

• Digital zoom: 5.0× magnification

• Image rotation capability for flexible viewing angles

Advanced Imaging Capabilities:

• Image resolution: 2592×1944 (postposition) / 1280×720

• Video resolution: 1920×1080 (postposition) / 1280×720

• Video recording up to 2 hours with voice annotation

• SD memory card included for storage (over 14,600 images capacity)

• AV output for viewing on external monitors

• Data transfer to PC via SD card or USB cable

Professional Camera Design:

• Compact, high-resolution waterproof camera probe

• Camera head with six built-in bright LED lamps

• Adjustable brightness dimmer for optimal illumination

• Glare-free close-up field of view

• Modern design housing with waterproof IP67 rating

• Flexible gooseneck retains configured shape during inspection

Camera Specifications:

Camera Probe (Ø5.5mm):

• Camera diameter: 5.5mm

• Binocular insertion tube: Direct and lateral vision options

• Pixel resolution: 1 Megapixel

• Viewing direction: 5mm~180mm

• Viewing angle: 68° wide angle

• Lighting type: 6 LED lamps with adjustable brightness

• Goose neck length options: 1M or 1.5M flexible length

System Specifications:

Display and Interface:

• LCD screen type: 8" 800×600 TFT LCD with touch panel

• Digital zoom: 5.0× magnification

• Wi-Fi Protocol/Standard: IEEE 802.11b/g/n

• Interfaces: SD card slot, mini USB, HDMI, charging interface

• Functions: Photo capture, Video recording, Brightness adjustment, Menu control, Image zoom, Image rotation

Power and Connectivity:

• Battery: Li-ion 3.7V 2200mAh rechargeable battery

• Power supply: Included power adaptor

• Connectivity: USB cable for data transfer and charging

• Video output: AV cable for external monitor connection

Physical Specifications:

• Size: 240mm x 160mm x 100mm (H x W x D)

• Weight: 584g (lightweight and portable)

Professional Applications:

Industrial Inspection:

• Mechanical equipment internal inspection

• Pipe and tubing visual examination

• Engine and turbine component inspection

• Welding and joint quality verification

• Manufacturing quality control

Maintenance and Repair:

• HVAC system inspection

• Automotive engine and component examination

• Electrical equipment internal viewing

• Plumbing system inspection

• Building maintenance applications

Quality Control:

• Production line inspection

• Casting and molding examination

• Assembly verification

• Defect detection in manufactured parts

• Component alignment checking

Safety and Special Applications:

• Hazardous environment visual inspection

• Confined space examination

• Remote viewing in inaccessible areas

• Preventive maintenance scheduling

• Documentation for compliance and reporting
