Reliable & Accurate Calibration for Infrared Thermometers

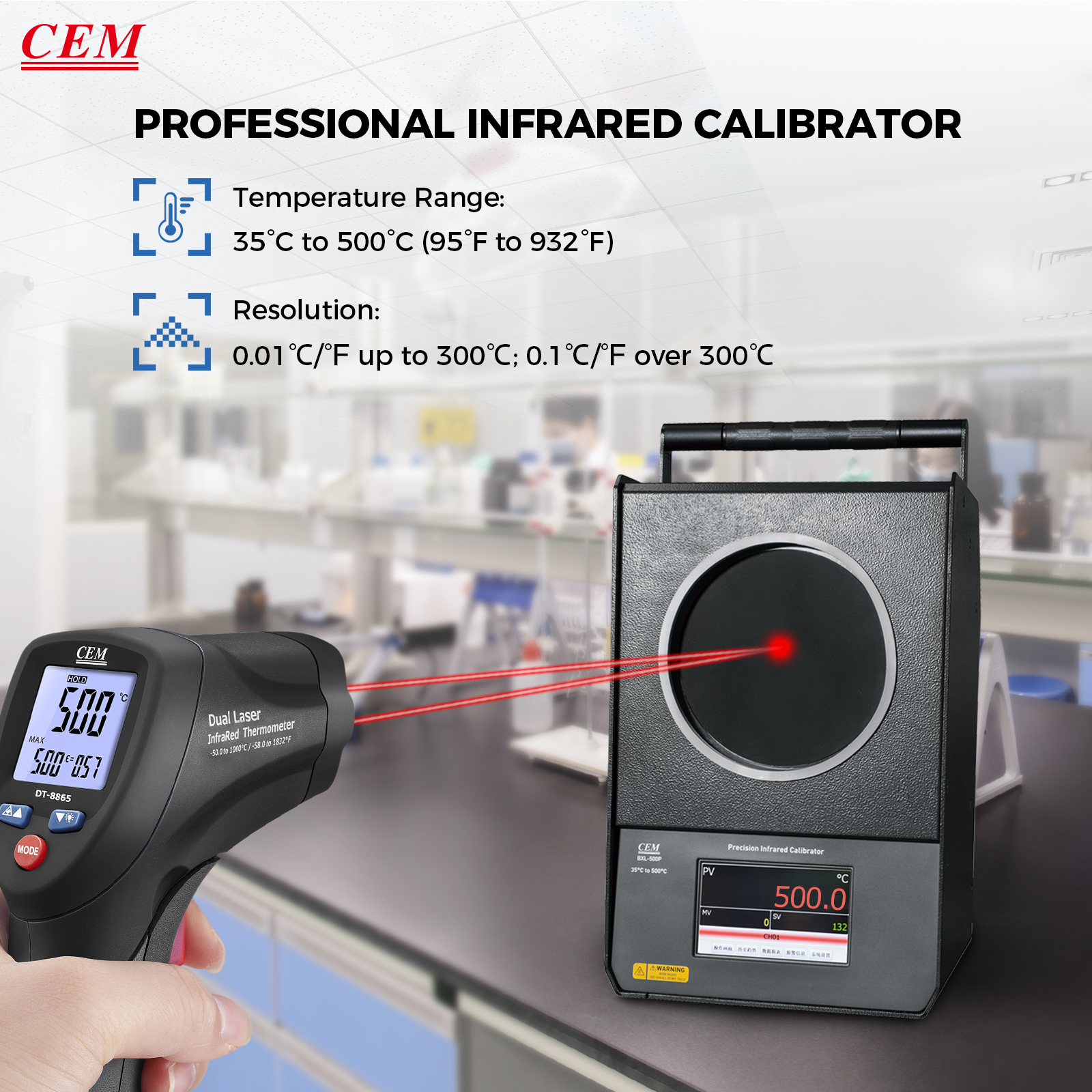

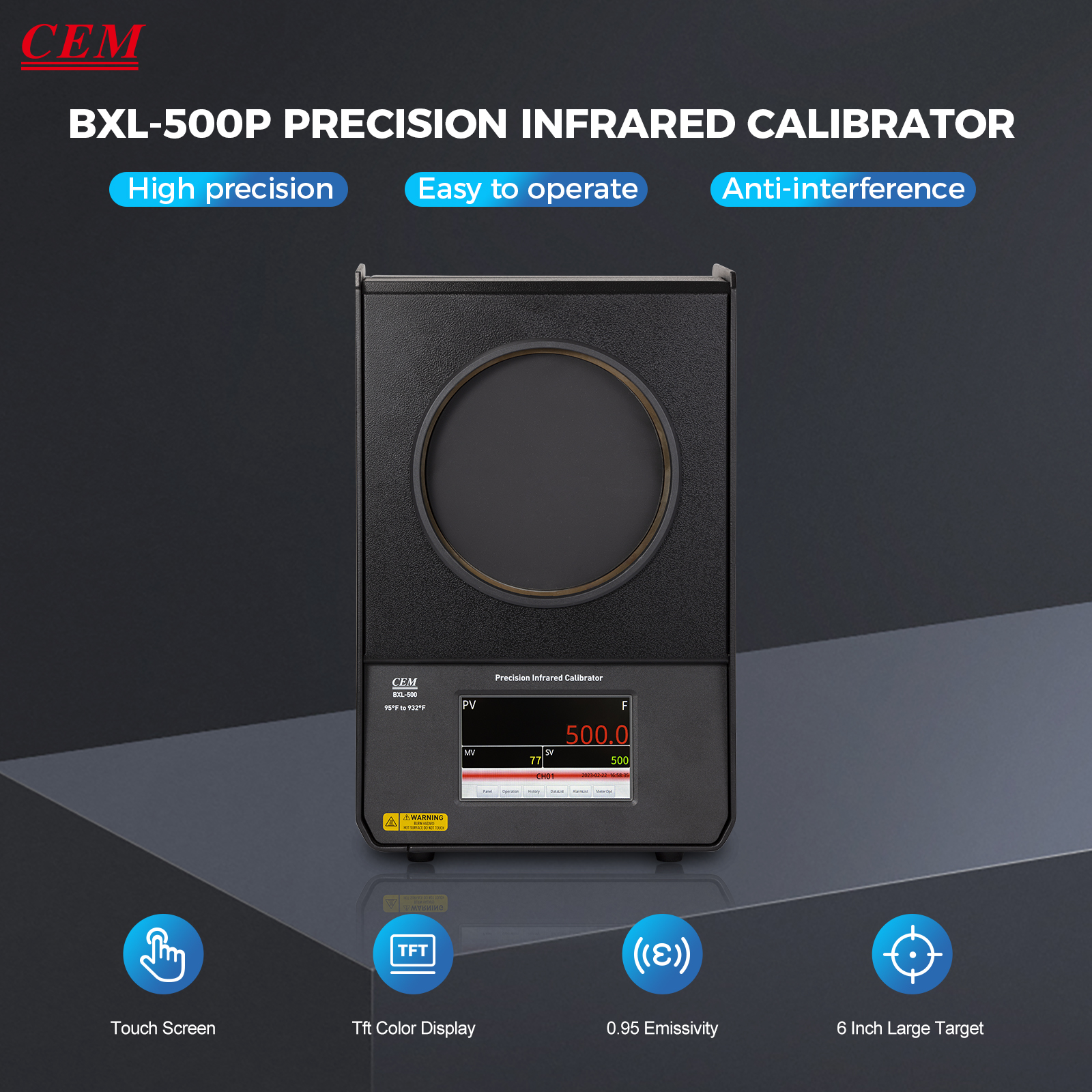

The BXL-500P Precision Infrared Calibrator is designed to enhance infrared temperature measurement accuracy with high-precision radiometric calibration. It ensures consistent, traceable results from 35°C to 500°C (95°F to 932°F), making it an ideal choice for industrial and laboratory applications.
🔹 Key Features
✅ Wide Temperature Range – Operates from 35°C to 500°C (95°F to 932°F).

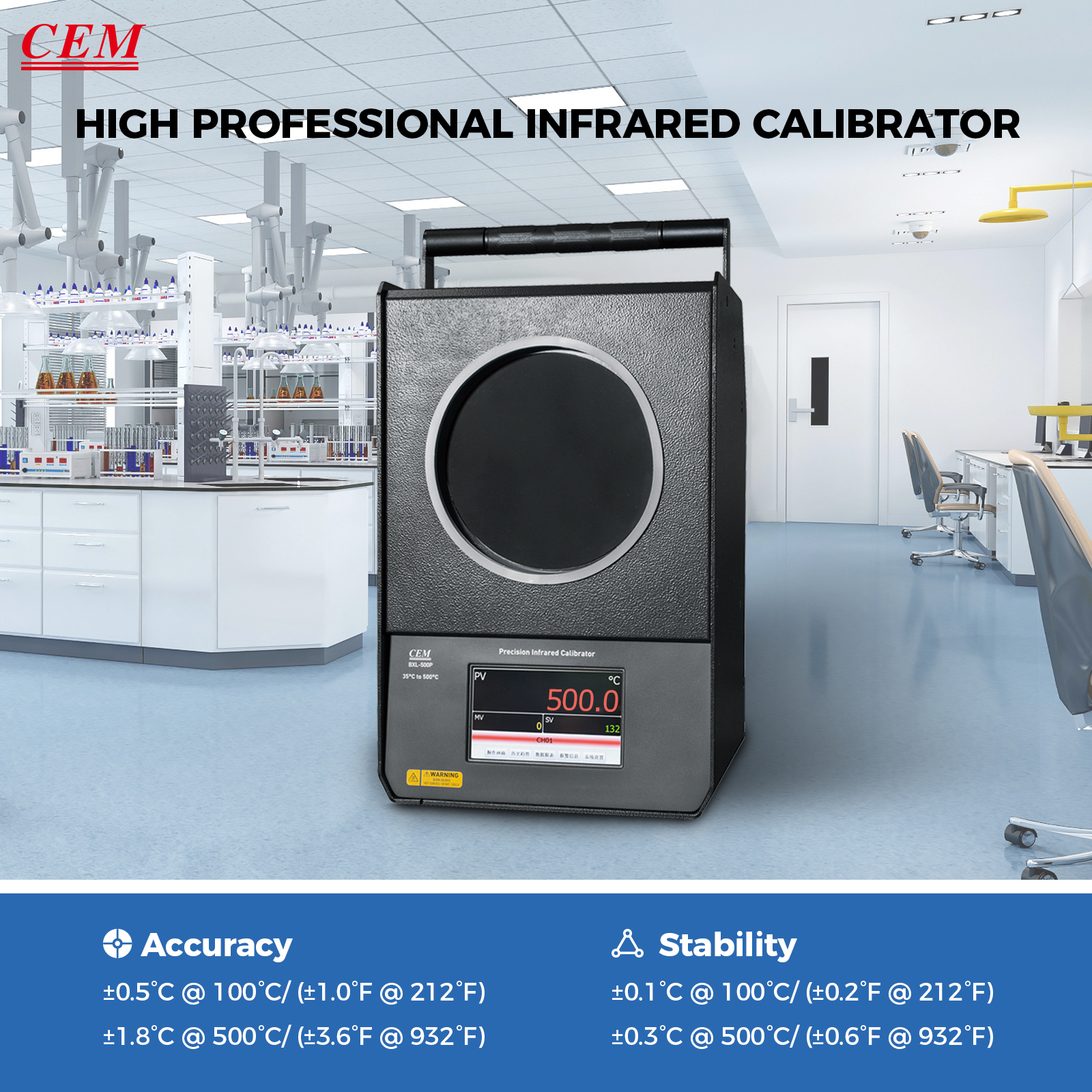

✅ High Accuracy – ±0.5°C at 100°C; ±1.8°C at 500°C.
✅ Stable Performance – Temperature stability of ±0.1°C at 100°C and ±0.3°C at 500°C.

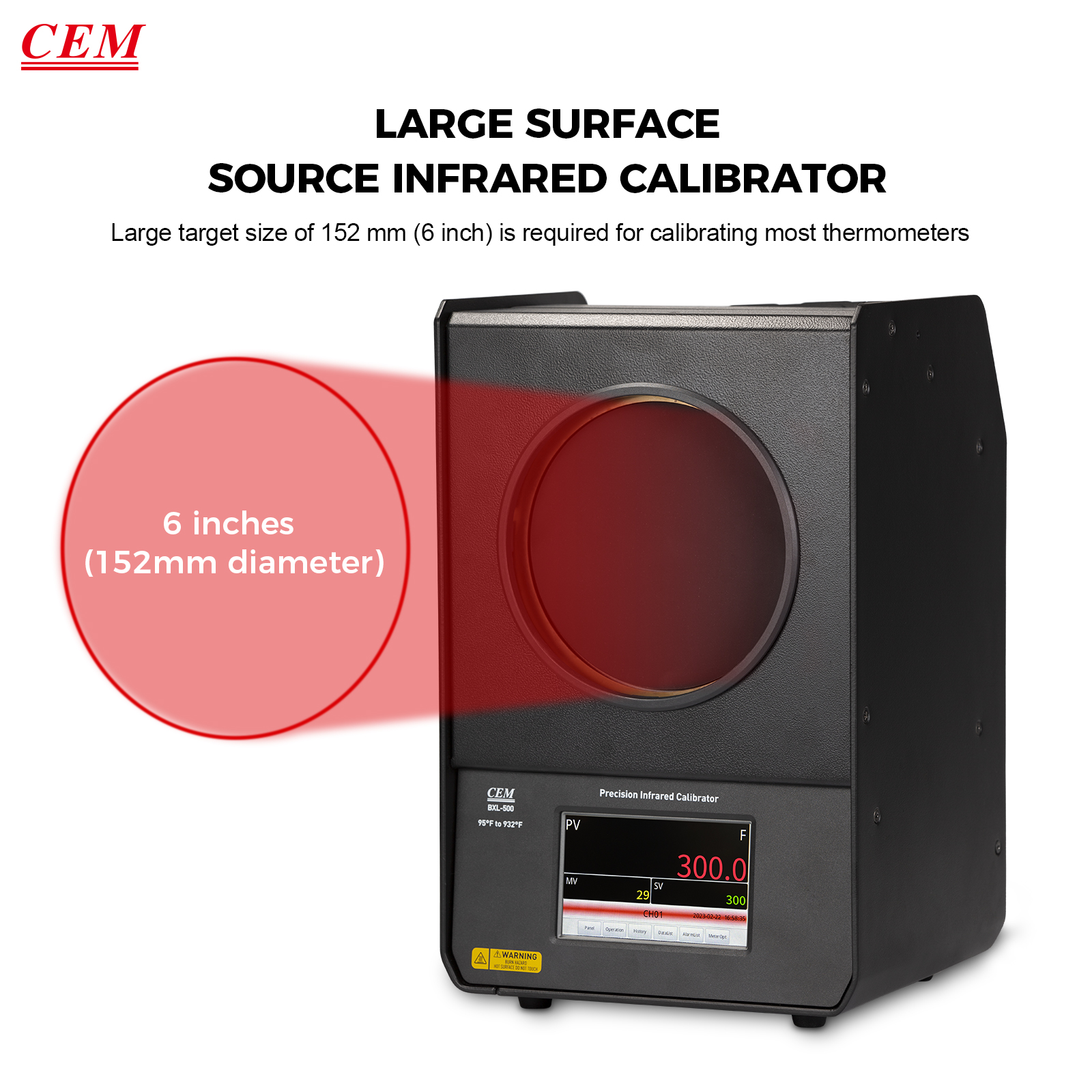

✅ Large Calibration Target – 6-inch (152mm) target size for reliable infrared thermometer calibration.
✅ High Emissivity Surface – Target emissivity set at 0.95 for consistent IR readings.

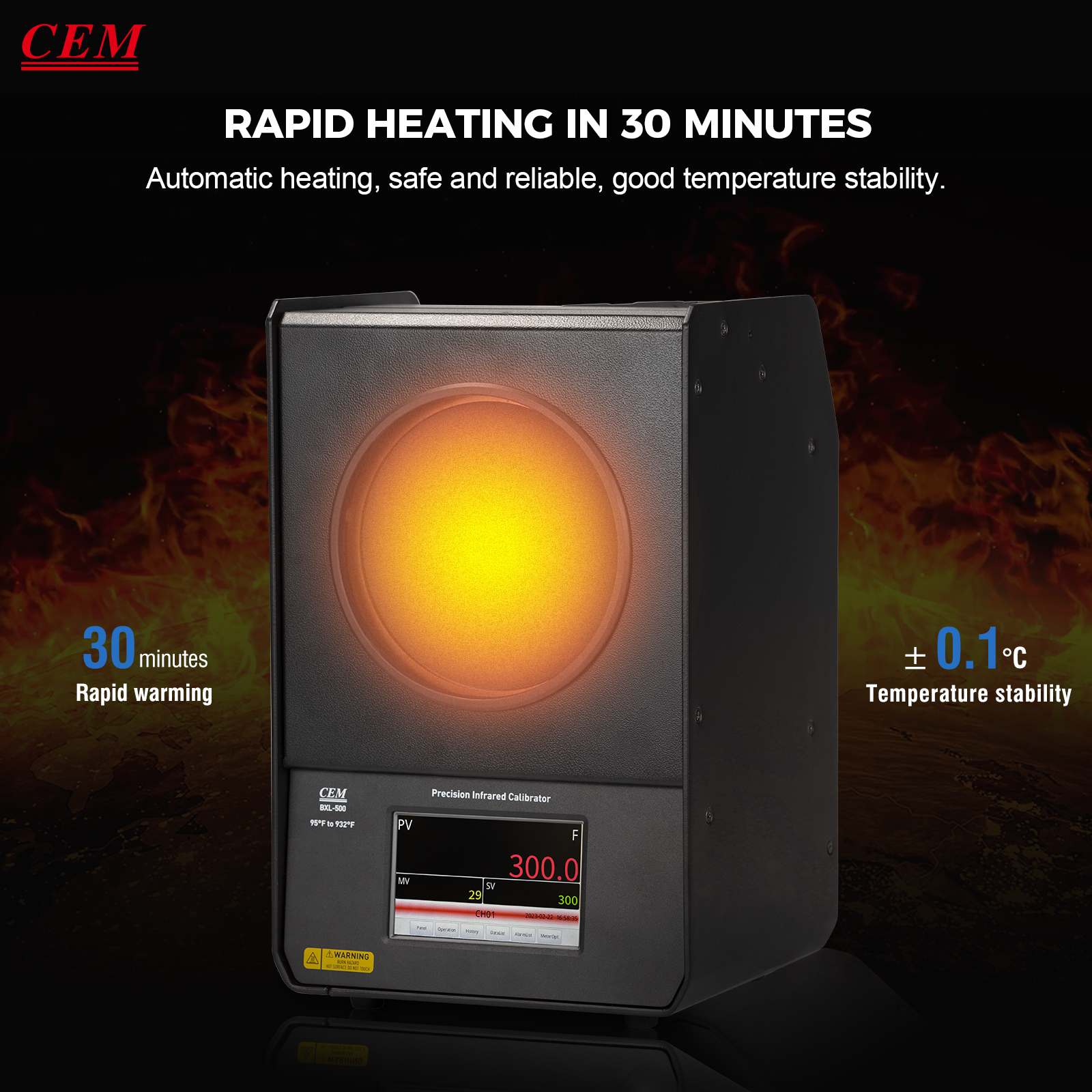

✅ Fast Heating & Cooling – 30 minutes to max temperature, 40 minutes to cool to 100°C.

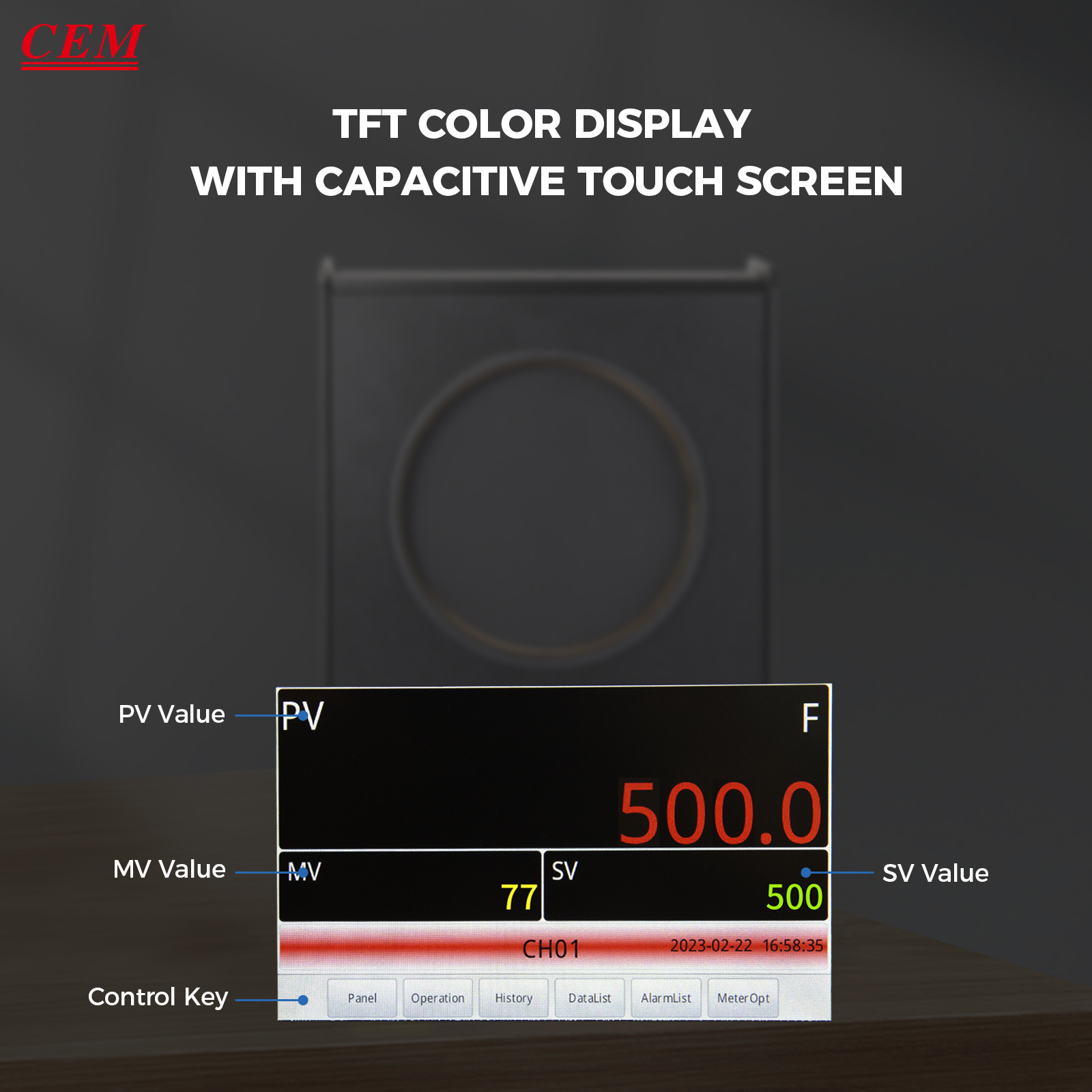

✅ Intuitive Display – Clear, easy-to-read screen shows real-time temperature stability.
✅ Ethernet Interface – Enables network connectivity for remote monitoring.
📊 Technical Specifications
- Temperature Range: 35°C ~ 500°C (95°F ~ 932°F)
- Accuracy:
- ±0.5°C @ 100°C (±1.0°F @ 212°F)
- ±1.8°C @ 500°C (±3.6°F @ 932°F)
- Stability:
- ±0.1°C @ 100°C (±0.2°F @ 212°F)
- ±0.3°C @ 500°C (±0.6°F @ 932°F)
- Resolution:
- 0.01°C/°F up to 300°C
- 0.1°C/°F over 300°C
- Target Size: 152mm (6 inches)
- Target Emissivity: 0.95
- Heating Time: 30 minutes to max temperature
- Cooling Time: 40 minutes to 100°C
- Power Supply:
- 230V AC (±10%), 1.5A
- 110V AC, 3A
📦 Dimensions & Weight
- Size (HxWxD): 180mm x 114mm x 233mm
- Weight: 2682g
🔧 Applications
🔹 Industrial Calibration – Ideal for calibrating infrared thermometers in factories and labs.
🔹 Medical & Healthcare – Ensures accurate temperature readings for medical devices.
🔹 Quality Assurance – Provides reliable, traceable calibration for production environments.
🔹 Research & Development – Essential for scientific studies requiring precise temperature control.
The BXL-500P Precision Infrared Calibrator is the perfect solution for high-precision infrared thermometer calibration. Its large target size, rapid heating/cooling, and network connectivity make it a top choice for industrial and scientific applications.
