The DT-9501 Radiation Scanner is a tested precision instrument that reliably measures γ rays, α rays, β rays, and X rays. Designed for professional and industrial applications, it offers dose accumulation, real-time data transfer, Bluetooth connectivity, and PC data analysis. With low power consumption, it ensures long-term data retention even after years of storage.
🔹 Key Features
✅ Multi-Ray Detection – Detects γ, α, β, and X rays with high precision.

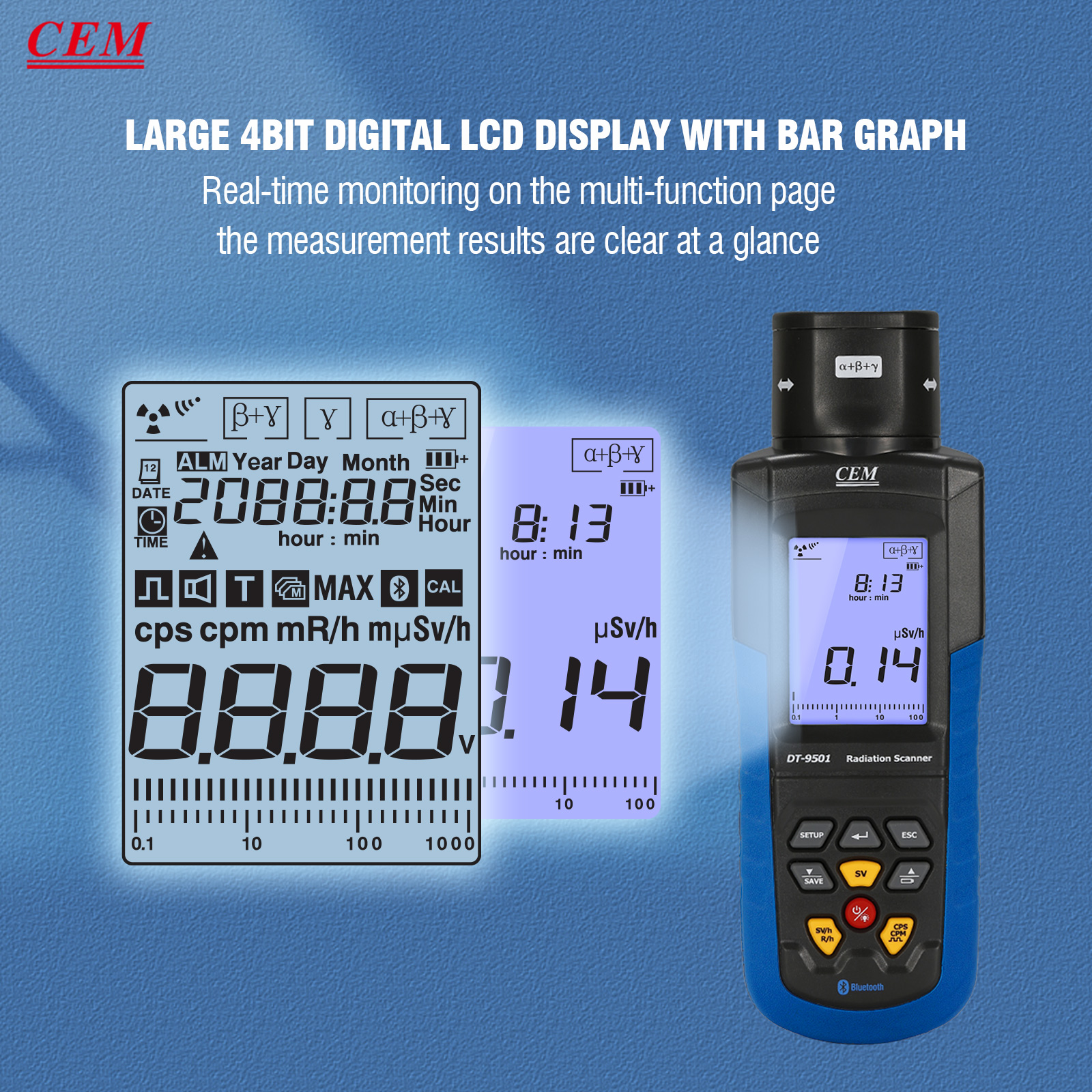

✅ Large LCD Display – Shows all inspection data with a numeric display and bar chart.
✅ Internal Memory – Stores up to 2000 data entries, either automatically or manually.
✅ Data Evaluation by PC – Supports real-time data transfer and analysis via Bluetooth.

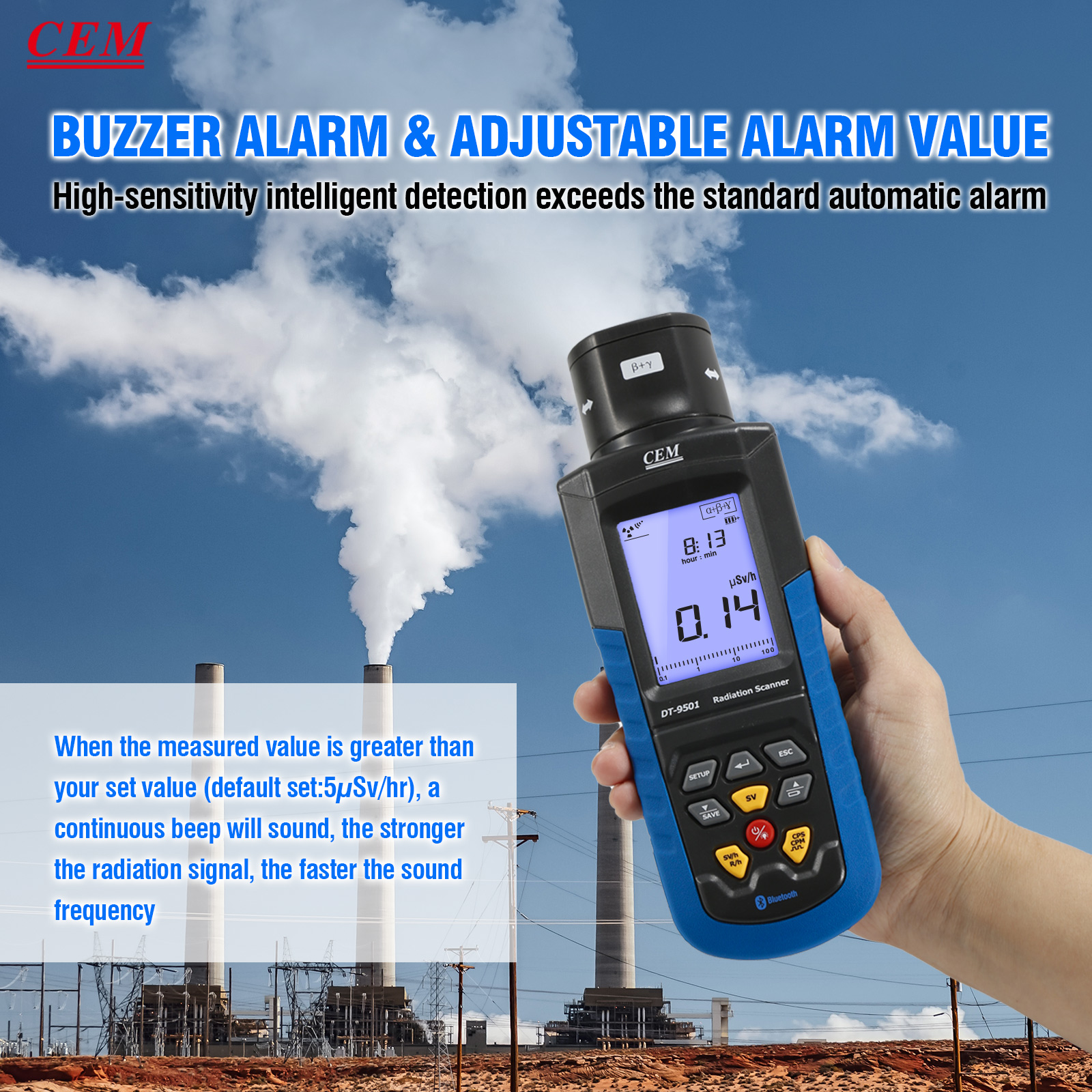

✅ Customizable Alert Settings – Set an alert threshold, with default at 5μSv/h.
✅ Low Power Consumption – Ensures long-term data retention for several years.

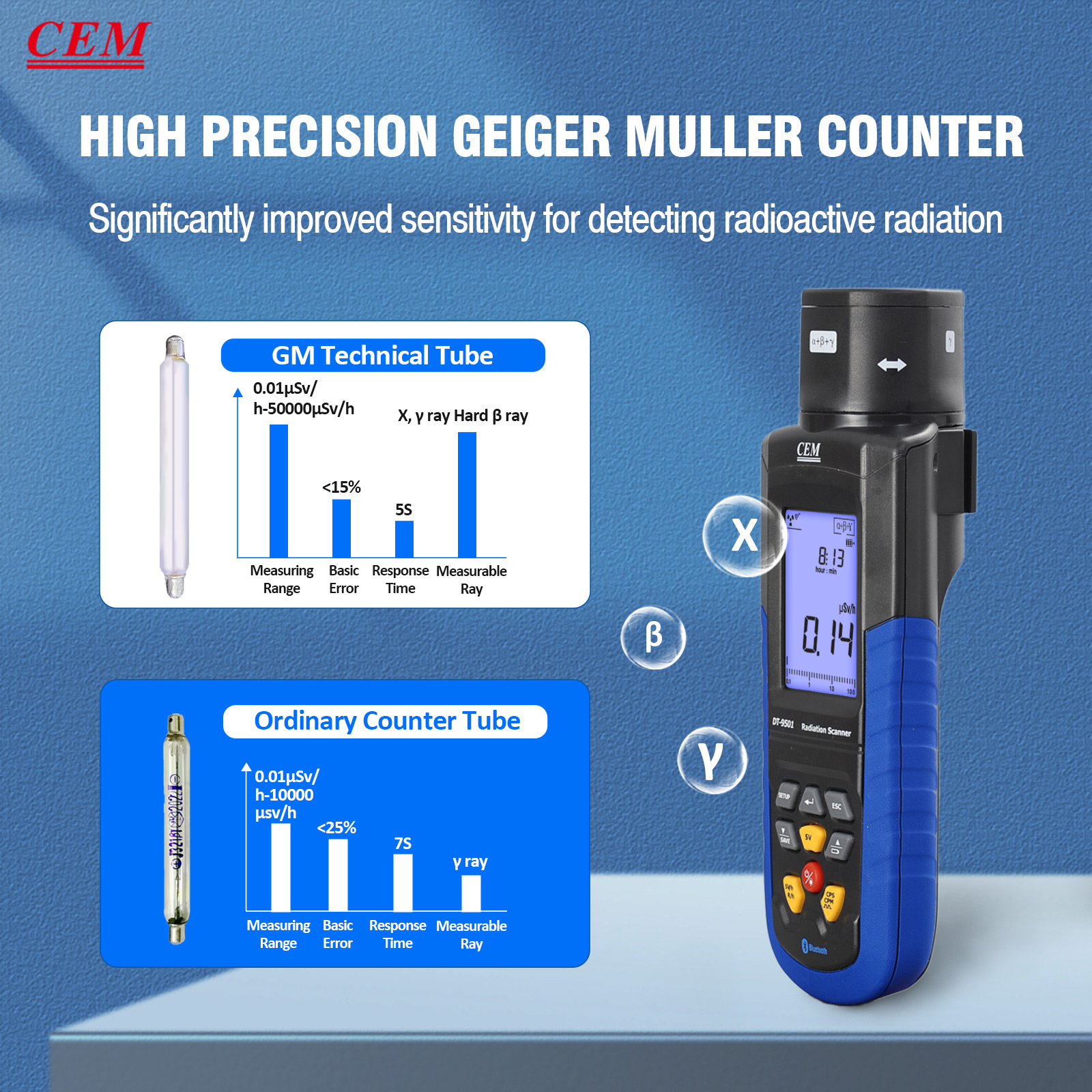

✅ Halogen-Filled Detector – Enhances measurement accuracy and stability.

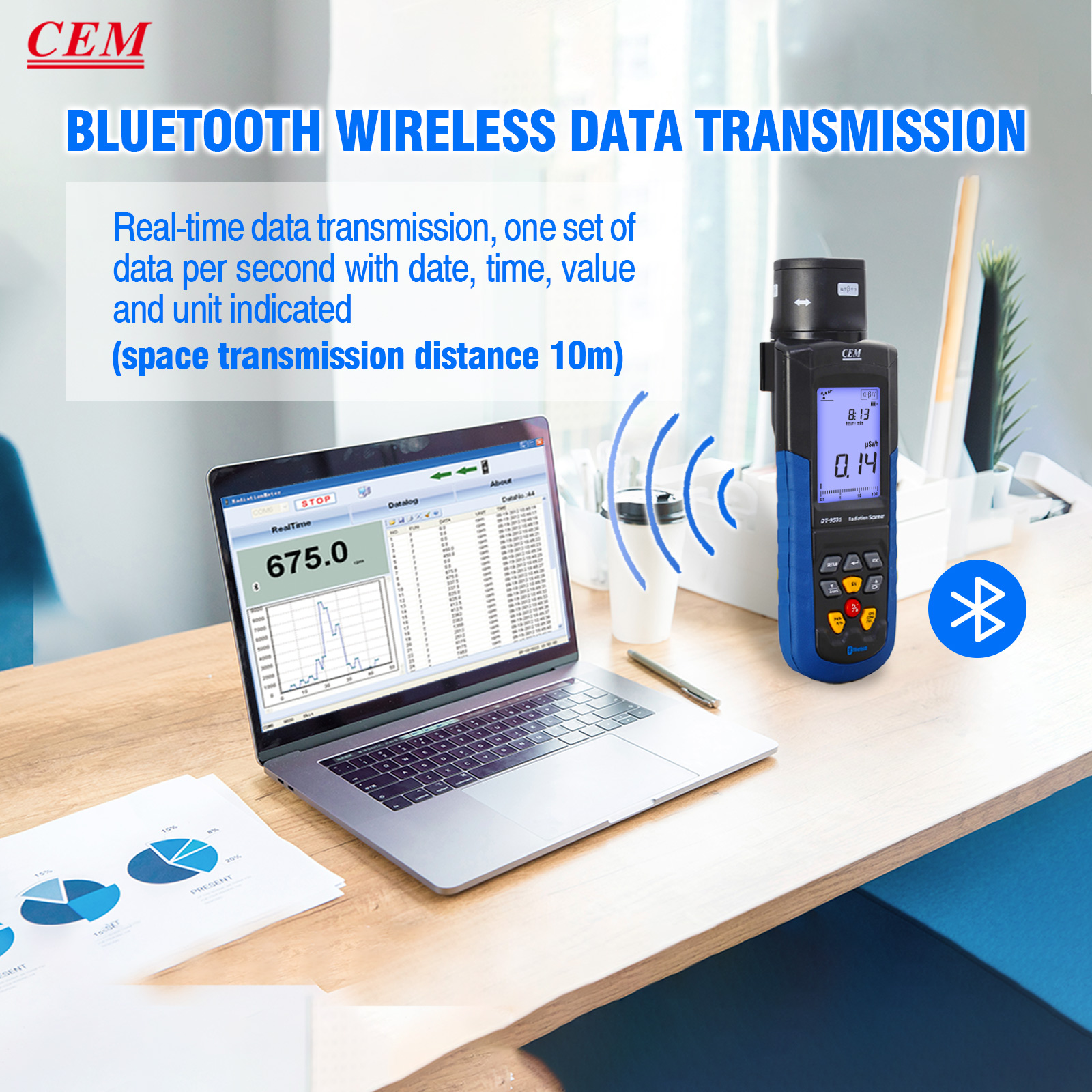

✅ Bluetooth Interface – Seamless wireless data transfer to external devices.
✅ Date Reset Function – Allows users to clear and reset data easily.
📊 Technical Specifications
DT-9501 Radiation Scanner
- Ray Types: α, β, γ, and X rays
- Radiation Dose Rate Range: 0.01μSv/h - 1000μSv/h
- Impulse Dose Rate Range: 0-30,000 cpm / 0-5,000 cps
- Radiation Dose Accumulation: 0.001μSv – 9999Sv
- Impulse Dose Accumulation: 0 - 9999
- Sensitivity:
- 108 pcs impulse or 1000 cpm/mR/hr in a Cobalt-60 environment at 1μSv/h.
- Alpha Ray Detection: From 4 MeV
- Beta Ray Detection: From 0.2 MeV
- Gamma Ray Detection: From 0.02 MeV
- X Ray Detection: From 0.02 MeV
- Ray Selection Switch: Allows users to select α, β, γ, or X rays.
- Sensor Type: Halogen-filled detector
- Output Port: Bluetooth
- Display: Dual LCD display with numeric data and bar chart visualization.
- Alert Function: Customizable alert settings, default 5μSv/hr.
- Accuracy: Typical ±15%
- Storage Capacity: 2000 data entries (automatic/manual storage).
- Operating Temperature: 0℃ to 50℃
📦 Dimensions & Accessories
- Device Size (HxWxD): 200mm × 70mm × 45mm (DT-9501)
- Weight: 206g

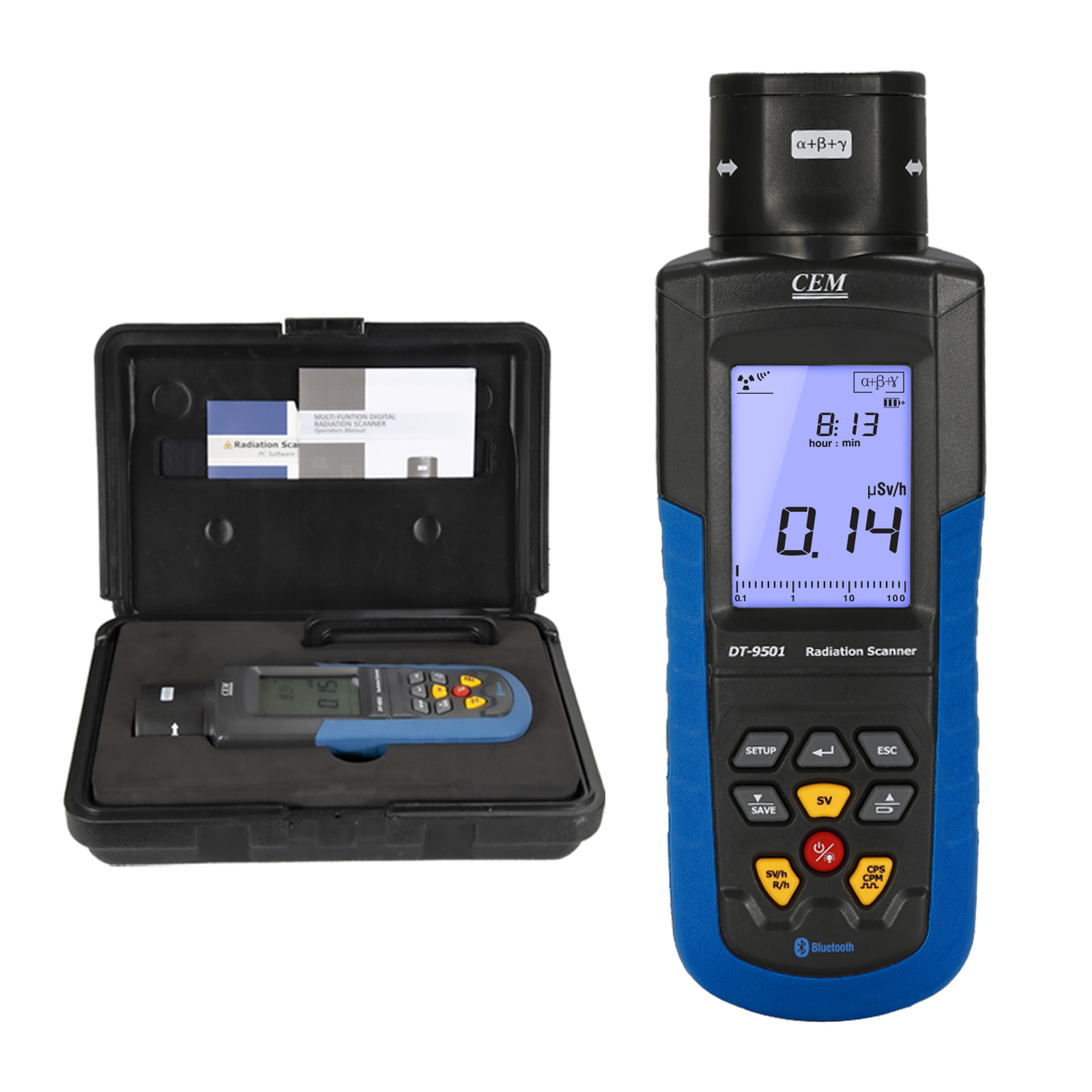

- Accessories Included:
✔ Software for PC Data Evaluation
✔ Carrying Case
✔ Gift Box
🔧 Applications
🔹 Nuclear Power & Radiation Safety – Monitor exposure levels in power plants and research labs.
🔹 Medical & X-Ray Equipment Testing – Ensure radiation levels meet safety standards.
🔹 Industrial & Environmental Monitoring – Detect leaks or contamination in factories and waste facilities.
🔹 Emergency Response & Personal Safety – Equip responders with precise radiation detection.
The DT-9501 Radiation Scanner is a versatile, high-precision instrument that provides real-time radiation monitoring, customizable alerts, and Bluetooth connectivity. Ideal for scientists, engineers, safety officers, and professionals in radiation-sensitive industries, it ensures accurate measurements and long-term data retention.
