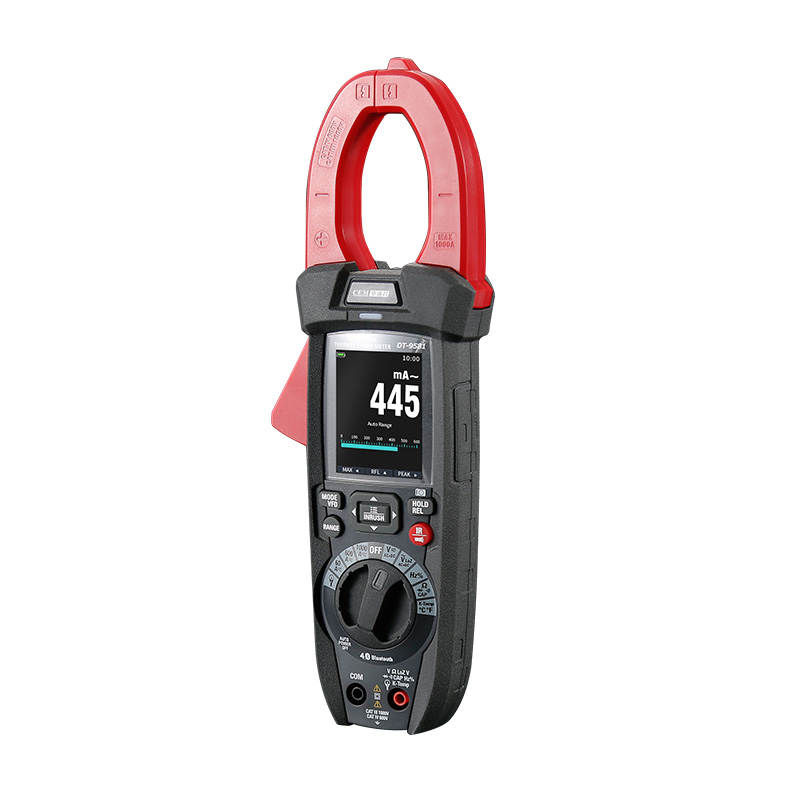

DT-9581 Professional Thermal Imaging Clamp Meter: See Heat, Measure Current, Solve Problems Faster
Revolutionize electrical diagnostics by combining sight and measurement. The DT-9581 is a groundbreaking tool that integrates a 120x120 resolution thermal imager directly into a high-precision True RMS clamp meter. This allows you to visually identify overheating components (connections, fuses, motors) while simultaneously measuring the AC/DC current (up to 1000A), voltage, or resistance causing the issue. With Bluetooth, inrush current capture, and a large color screen, it’s the ultimate all-in-one instrument for predictive maintenance and advanced troubleshooting.
Key Advantages:
-
Dual-Diagnosis in One Tool: See thermal anomalies with the built-in IR camera (-20°C to 260°C) and precisely measure the electrical cause with the clamp (AC/DC voltage, current up to 1000A, resistance, etc.) without switching devices.
-
True RMS with Advanced Filters: Provides accurate readings on noisy industrial power with True RMS, a low-pass filter for VFD signals, and a 1kHz bandwidth for reliable motor drive measurements.
-
Capture Demanding Electrical Events: Measure inrush current and capture transient peaks as fast as 500µs to diagnose startup problems and intermittent faults.
-
Wireless Data & Reporting: Bluetooth connectivity links to the Thermview+ smartphone app for saving thermal images with synchronized electrical data, creating comprehensive reports, and sharing findings.
-
High-Capacity & Flexible: Features a 1.4-inch (37mm) jaw for large conductors. Optional flexible current probes (sold separately) extend AC current measurement up to 3000A.
The Ultimate Tool for Electrical & Maintenance Professionals:
-
Industrial Electricians & Maintenance Technicians for predictive maintenance rounds
-
HVAC/R Engineers diagnosing compressor loads and electrical faults
-
Facility Managers and Energy Auditors
-
Data Center and Utility Technicians
-
Any professional who needs to correlate thermal images with live electrical data for root cause analysis
Quick Specs:
-
Thermal Imager: 120x120 IR Resolution, 21° FOV, -20°C to 260°C
-
Clamp Meter: True RMS, 1000A AC/DC Current, 1000V AC/DC Voltage
-
Key Features: Integrated Thermal & Electrical Diagnosis, Bluetooth, Inrush/Peak Capture, Low-Pass Filter
-
Display: 2.4” TFT Color LCD (240x320 pixels)
-
Advanced Functions: Capacitance, Frequency, Temperature (with probe), Data Logging
-
Jaw Size: 1.4” (37mm), expandable to 3000A with optional flexible probe
-
Power: Rechargeable Li-ion Battery
-
Weight: 550g (All-in-One Design)
-

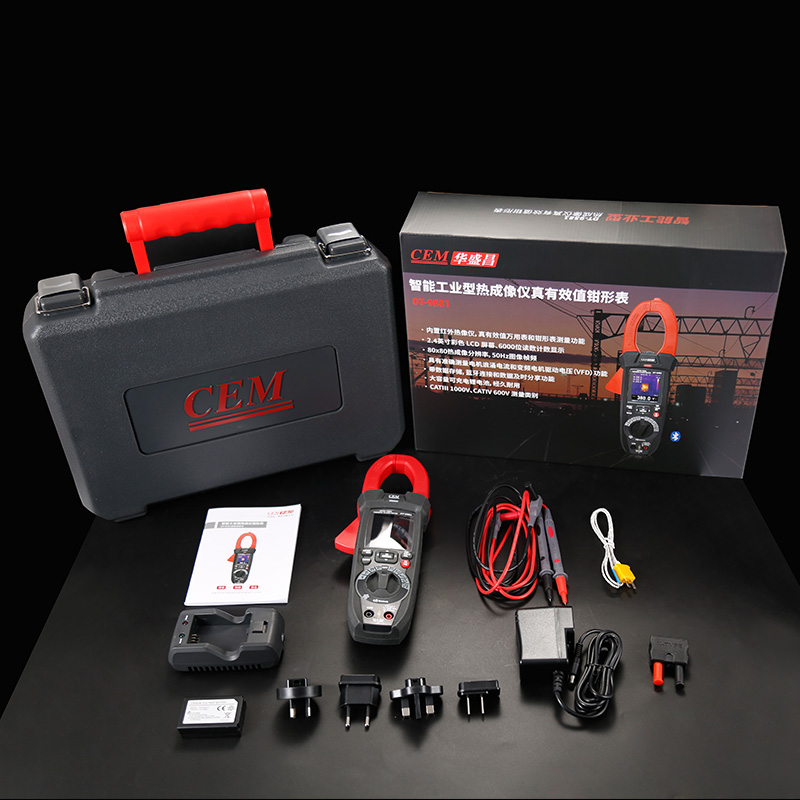

Included: Test leads, carrying case, temperature probe, Li-ion battery, AC charger.
