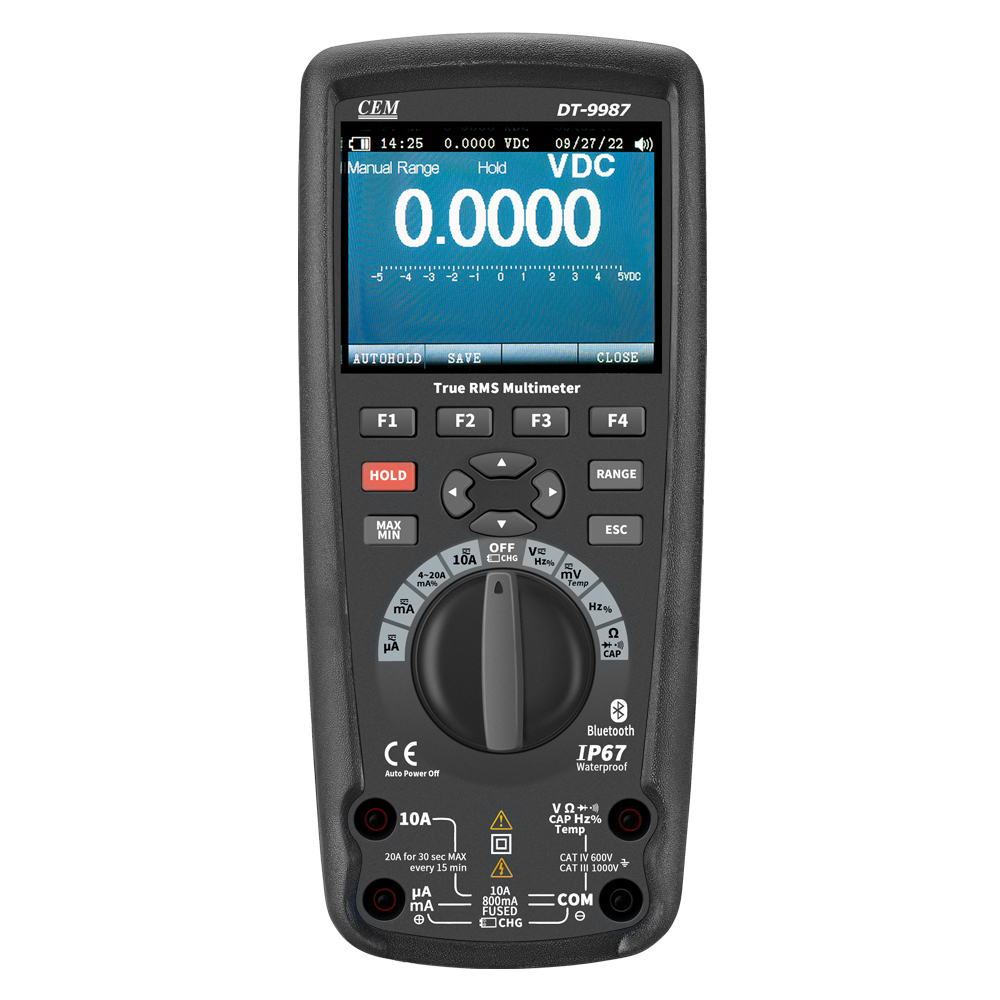

The DT-9987 Professional True RMS Industrial Multimeter is designed for professionals who demand high accuracy, robust safety features, and advanced functionality. With its 50,000-count resolution, TFT color LCD display, and Bluetooth connectivity, this multimeter is perfect for diagnosing and troubleshooting industrial equipment with ease.
Key Features
-

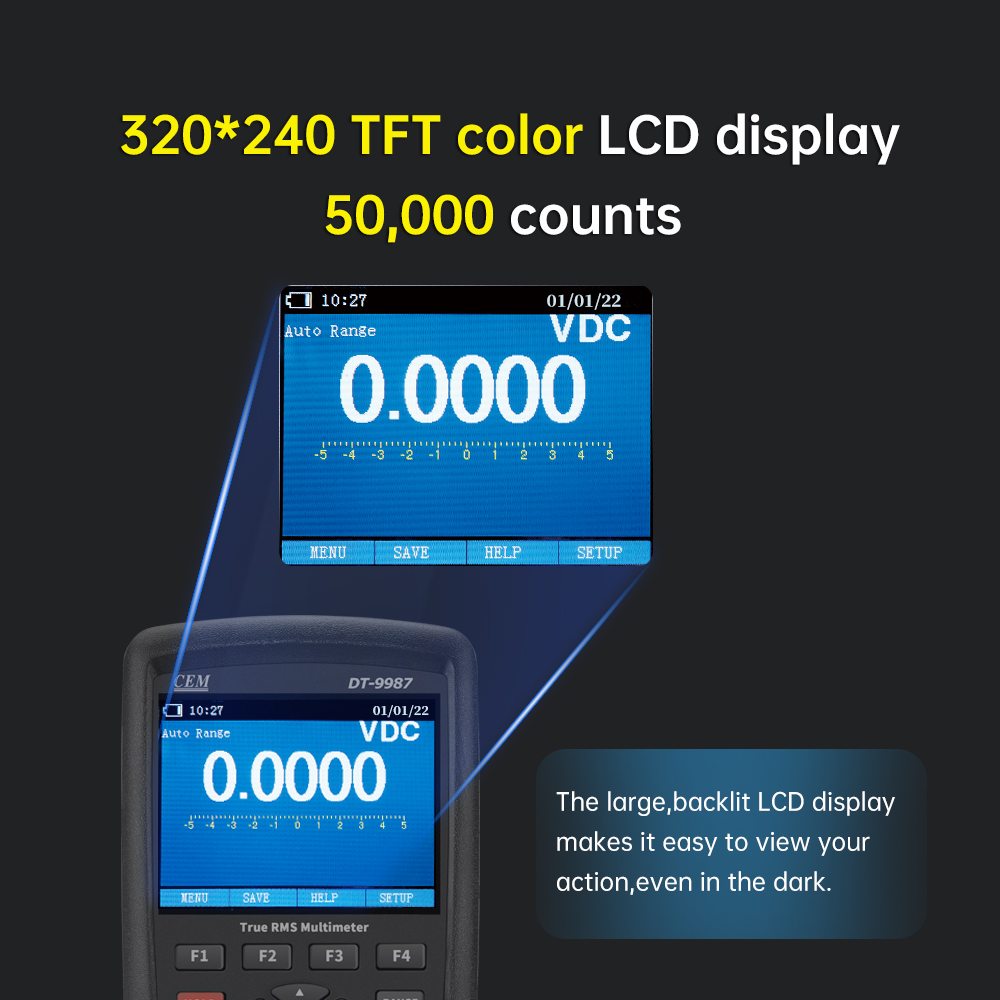

High-Resolution Display: Features a 320 x 240 TFT color LCD for clear and detailed readings.
-
True RMS Measurements: Accurately measures AC/DC voltage, current, resistance, capacitance, and more.
-
Advanced Data Logging: Capture and analyze trends with Trend Capture and store over 10,000 data points.
-

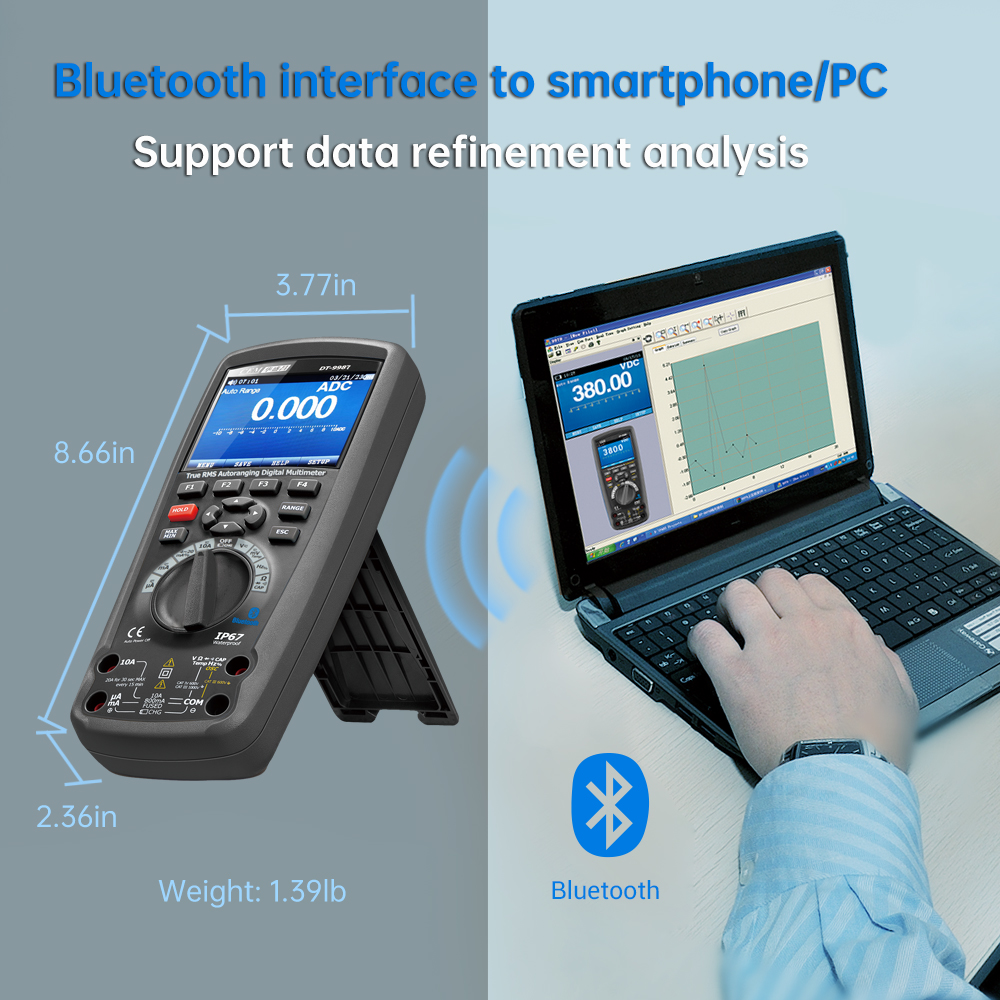

Bluetooth Connectivity: Sync with Meterbox Pro & Cloud Service for seamless data transfer and calibration.
-
Peak Capture: Records transients as fast as 250μs for precise signal analysis.
-
Motor Winding & Low Ohm Measurement: Ideal for industrial applications with a 50Ω range.
-
4-20mA Process Loop Measurement: Perfect for industrial process monitoring with % reading.
-
IP67 Waterproof Rating: Designed to withstand harsh environments.
Technical Specifications
| Function |
Max Range |
Resolution |
Accuracy |
| DC Voltage |
1000V |
1µV |
±(0.025% + 5) |
| AC Voltage |
1000V |
1µV |
±(0.4% + 40) |
| DC Current |
10A |
0.01µA |
±(0.15% + 2) |
| AC Current |
10A |
0.01µA |
±(0.6% + 5) |
| Temperature |
-50°C to 1000°C |
0.1°C |
±(1.0% + 2.5°C) |
| Resistance |
50MΩ |
0.01Ω |
±(0.05% + 2) |
| Capacitance |
10mF |
0.001nF |
±(1.0% + 5) |
| Frequency |
10MHz |
0.01Hz |
±(0.005% + 1) |
| Diode & Continuity |
Yes |
|
|
Safety and Durability
-
CAT IV 600V/CAT III 1000V Safety Rating: Complies with EN61010-1 standards for safe operation in high-voltage environments.
-
1000V Input Protection: All ranges are protected against overvoltage.
-
Fuse Protection: 10A/1000V and 0.8A/1000V fuses for current ranges.
-
Double-Molded Housing: Ensures durability and protection against impacts.
-
IP67 Waterproof Rating: Suitable for use in harsh and wet conditions.
Additional Features
-
Auto Power Off: Conserves battery life when not in use.
-
Min/Max/Average Recording: Tracks signal fluctuations with timestamps.
-
Low Pass Filter: Ensures accurate measurements in noisy environments.
Rechargeable Battery: Powered by a Li-ion battery with up to 18 hours of continuous use.
Product Specifications
-
Dimensions: 220mm x 96mm x 60mm
-
Weight: 631g
-

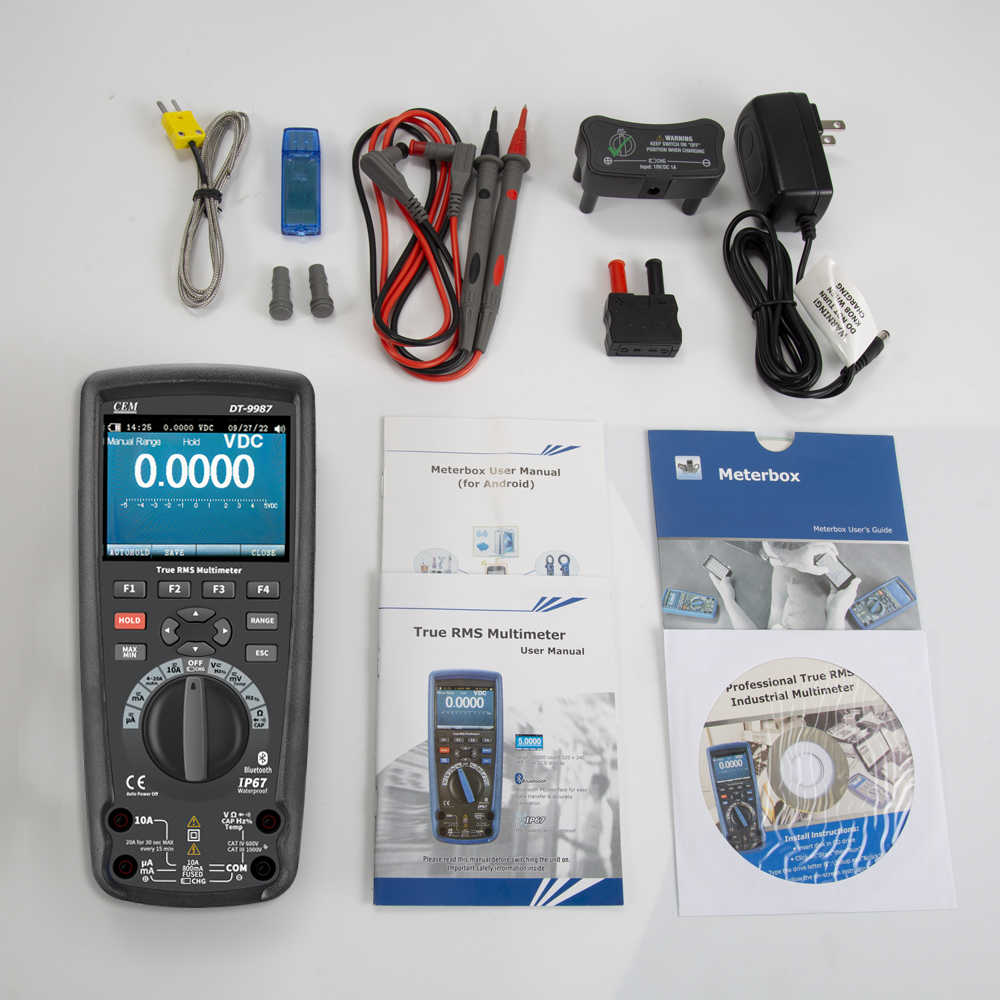

Accessories: Test leads, Li-ion batteries, Type K temperature probe, AC adapter, software, and carrying case.
